[Solved]Instruction 12 4 5 Executes Arithmetic Logic Operation Data Values Stored Register 4 5 Sub Q37202163

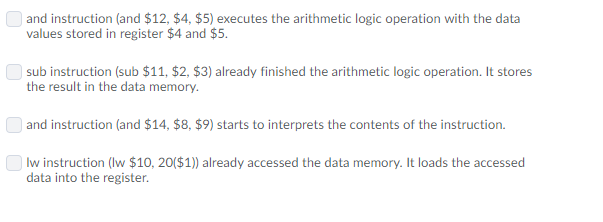

and instruction (and $12, $4, $5) executes the arithmetic logic operation with the data values stored in register $4 and $5. sub instruction (sub $11, $2, $3) already finished the arithmetic logic operation. It stores the result in the data memory. and instruction (and $14, $8, $9) starts to interprets the contents of the instruction. lw instruction (lw $10, 20($1) already accessed the data memory. It loads the accessed data into the register. and $14, $8, $9 r $13, $6 and $12, $4, $5 sub $11, $2, $3 $10, 20 ($1) 10 Add Add Lent Rag 2 ALU Registers Wte Read Rep 10 $7 $5 Data Memory ory Clock 5 10 RegDst and instruction (and $12, $4, $5) executes the arithmetic logic operation with the data values stored in register $4 and $5. sub instruction (sub $11, $2, $3) already finished the arithmetic logic operation. It stores the result in the data memory. and instruction (and $14, $8, $9) starts to interprets the contents of the instruction. lw instruction (lw $10, 20($1)) already accessed the data memory. It loads the accessed data into the register. Show transcribed image text and instruction (and $12, $4, $5) executes the arithmetic logic operation with the data values stored in register $4 and $5. sub instruction (sub $11, $2, $3) already finished the arithmetic logic operation. It stores the result in the data memory. and instruction (and $14, $8, $9) starts to interprets the contents of the instruction. lw instruction (lw $10, 20($1) already accessed the data memory. It loads the accessed data into the register.
and $14, $8, $9 r $13, $6 and $12, $4, $5 sub $11, $2, $3 $10, 20 ($1) 10 Add Add Lent Rag 2 ALU Registers Wte Read Rep 10 $7 $5 Data Memory ory Clock 5 10 RegDst and instruction (and $12, $4, $5) executes the arithmetic logic operation with the data values stored in register $4 and $5. sub instruction (sub $11, $2, $3) already finished the arithmetic logic operation. It stores the result in the data memory. and instruction (and $14, $8, $9) starts to interprets the contents of the instruction. lw instruction (lw $10, 20($1)) already accessed the data memory. It loads the accessed data into the register.
