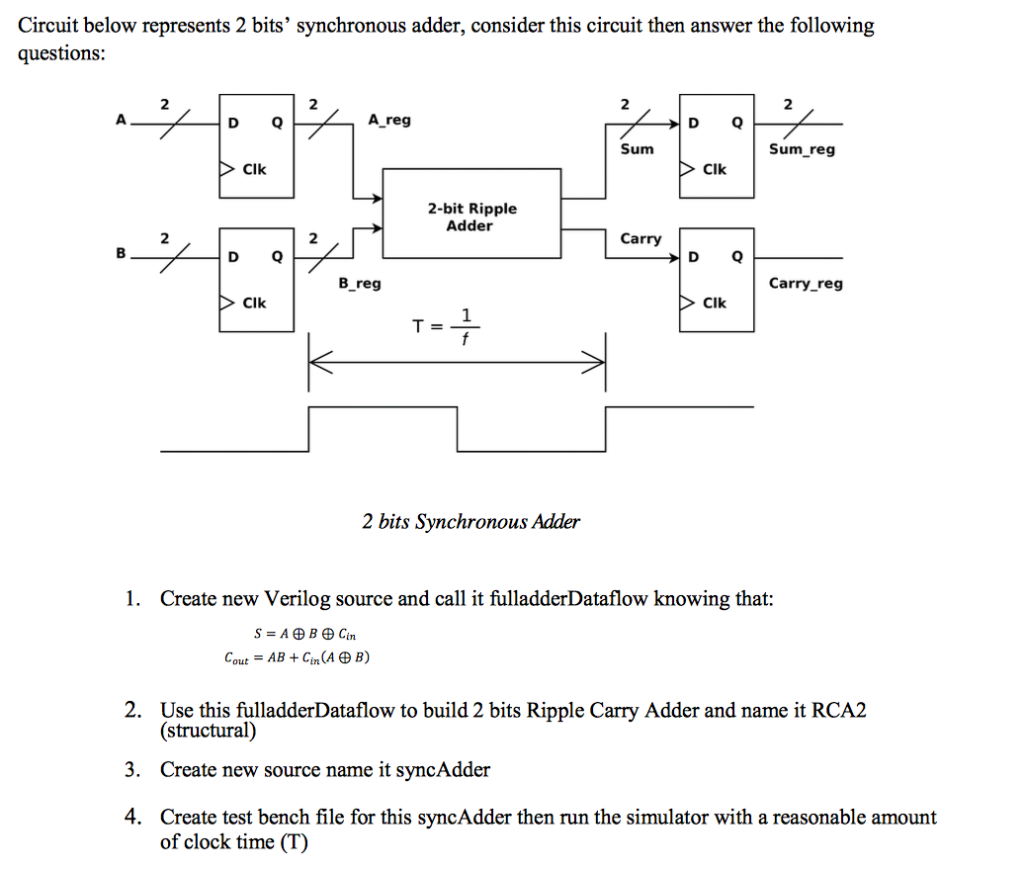

Circuit below represents 2 bits’ synchronous adder, considerthis circuit then answer the following questions:

2 bits Synchronous Adder

1. Create new Verilog source and call it fulladderDataflow knowingthat:

   = ⊕ ⊕ = + ( ⊕ )

2. Use this fulladderDataflow to build 2 bits Ripple Carry Adderand name it RCA2 (structural)

3. Create new source name it syncAdder

4. Create test bench file for this syncAdder then run the simulatorwith a reasonable amount of clock time (T)

Submission:
You are to submit one notepad file (or the corresponding maceditor). Your notepad file has to include the following items:

a. Full adder code in data flow Verilog coding style
b. Two (2) bits’ Ripple Carry Adder RCA code in structural Verilogcoding style c. Synchronous two bits’ adder using behavioralVerilog coding style
d. Test bench code only for the synchronous adder
