[Solved]3 Implement Next Pseudo Code Demo R1 8 0 R4 R4 R2 R3 R2 R2 1 R3 R3 1 Endif 2 Load Rom Simu Q37218672

DRAW IN LOGISIM

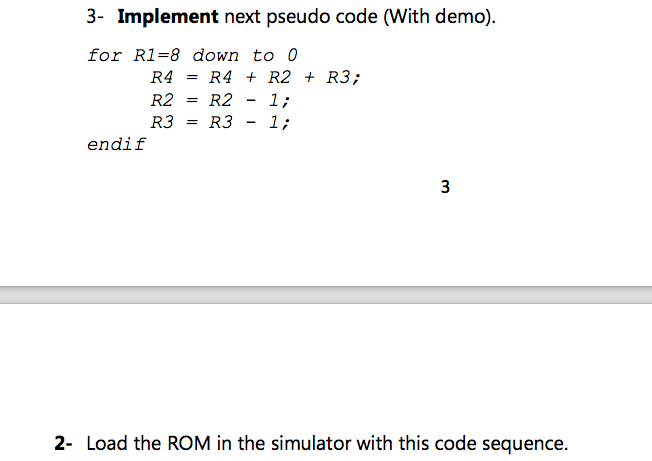

3- Implement next pseudo code (With demo) for R1=8 down to 0 R4 = R4 + R2 + R3; R2 = R2-1; R3=R3-1; endif 2- Load the ROM in the simulator with this code sequence. Show transcribed image text 3- Implement next pseudo code (With demo) for R1=8 down to 0 R4 = R4 + R2 + R3; R2 = R2-1; R3=R3-1; endif 2- Load the ROM in the simulator with this code sequence.
