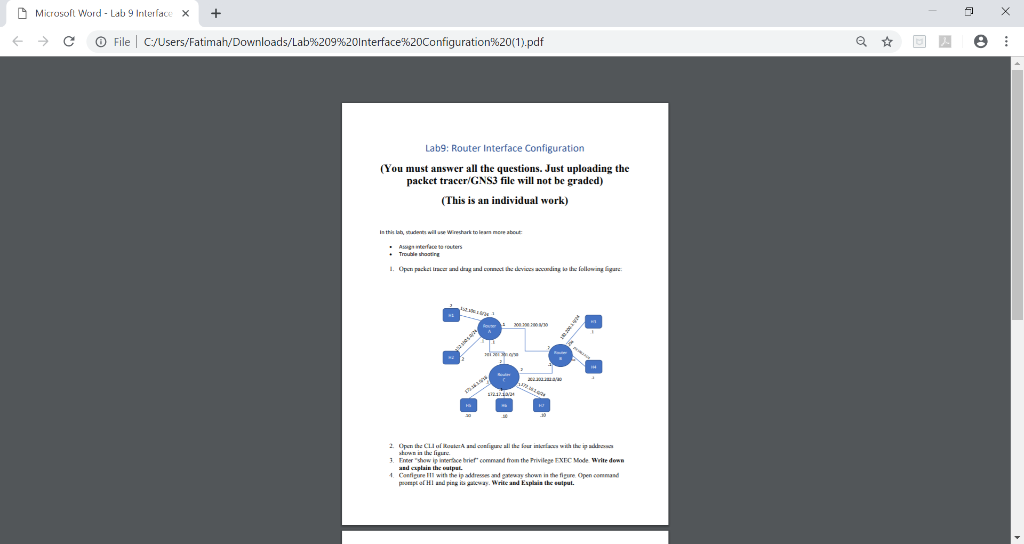

Microsoft Word – Lab 9 Interface x+ > C O File! C:/Users/Fatimah/Downloads/Lab%20g%20Interface%20Configuration%20(1).pdf Lab9: Router Interface Configuration (You must answer all the questions. Just uploading the packet tracer GNS3 file will not be graded) (This is an individual work) erface to 3. Enner “show ip imenace brief” command from the Privilege EXEC Mode Wvite dewn Coefigre II1 with the ip addresses and ganeuy shown in the figure Open conmand Page 5. Configure H2 with the ip addresses and gateway shown in the figure. 6. Configure H3 with the ip addresses and gateway shown in the figure. Ope mand prompt ofH3 and ping its 7. gateway. Write and Explain the output Open the CLI of RouterB and configure all the four interfaces with the ip addresses shown in the figure. 8. Open command prompt of H3 and ping its gateway. Write and Explain the output 9. Configure H2 with the ip addresses and gateway shown in the figure. 10. In RouterA, enter “show ip interface brief command from the Privilege EXEC Mode. Write down and explain the output. 11. From RouterA ping RouterB and RouterC Write and explain the output 12. Open the CLI of RouterC and configure all the five interfaces with the ip addresses 13. In RouterC, enter show ip interface brief command from the Privilege EXEC Mode. Write down and explain the output. 14. From RouterC, ping H6, Router1, and Router2. Write and explain the output. 15. Configure HS, H6, and H7 with the ip addresses and gateway shown in the figure. 16. From RouterC, ping H6, Router, and Router2. Write and explain the output. 17, Save the running configuration as startup configuration in all the Routers. 18. Type ‘show running-config’ in Privilege EXEC Mode. Write and explain the output. Show transcribed image text Microsoft Word – Lab 9 Interface x+ > C O File! C:/Users/Fatimah/Downloads/Lab%20g%20Interface%20Configuration%20(1).pdf Lab9: Router Interface Configuration (You must answer all the questions. Just uploading the packet tracer GNS3 file will not be graded) (This is an individual work) erface to 3. Enner “show ip imenace brief” command from the Privilege EXEC Mode Wvite dewn Coefigre II1 with the ip addresses and ganeuy shown in the figure Open conmand

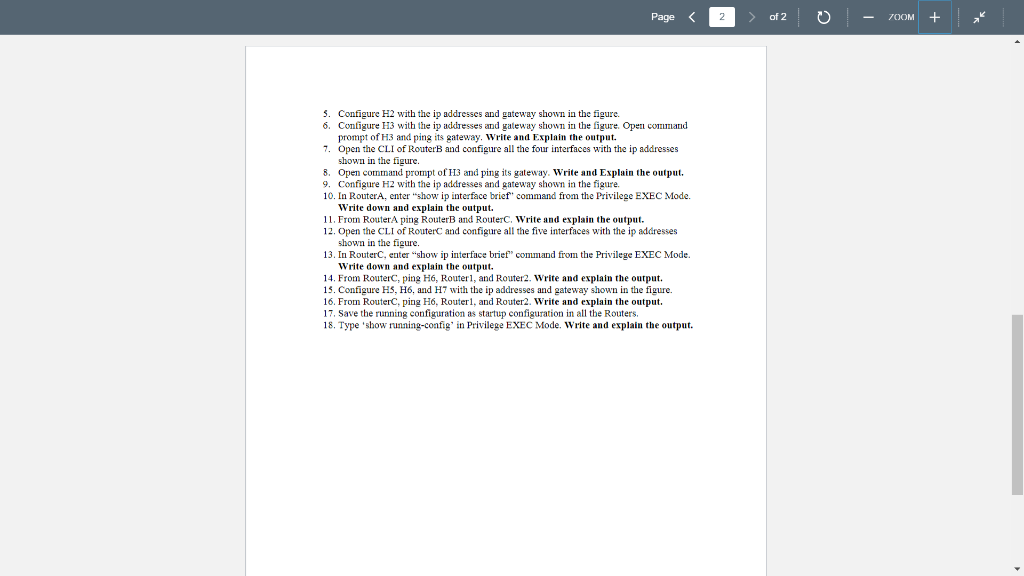

Page 5. Configure H2 with the ip addresses and gateway shown in the figure. 6. Configure H3 with the ip addresses and gateway shown in the figure. Ope mand prompt ofH3 and ping its 7. gateway. Write and Explain the output Open the CLI of RouterB and configure all the four interfaces with the ip addresses shown in the figure. 8. Open command prompt of H3 and ping its gateway. Write and Explain the output 9. Configure H2 with the ip addresses and gateway shown in the figure. 10. In RouterA, enter “show ip interface brief command from the Privilege EXEC Mode. Write down and explain the output. 11. From RouterA ping RouterB and RouterC Write and explain the output 12. Open the CLI of RouterC and configure all the five interfaces with the ip addresses 13. In RouterC, enter show ip interface brief command from the Privilege EXEC Mode. Write down and explain the output. 14. From RouterC, ping H6, Router1, and Router2. Write and explain the output. 15. Configure HS, H6, and H7 with the ip addresses and gateway shown in the figure. 16. From RouterC, ping H6, Router, and Router2. Write and explain the output. 17, Save the running configuration as startup configuration in all the Routers. 18. Type ‘show running-config’ in Privilege EXEC Mode. Write and explain the output.
