[Solved]Drain Currents Mi M2 Reference Fig P1688 R 42 K Vdd K 10 V2 Vtp 075 V Assume 0 A0 Transist Q37176716

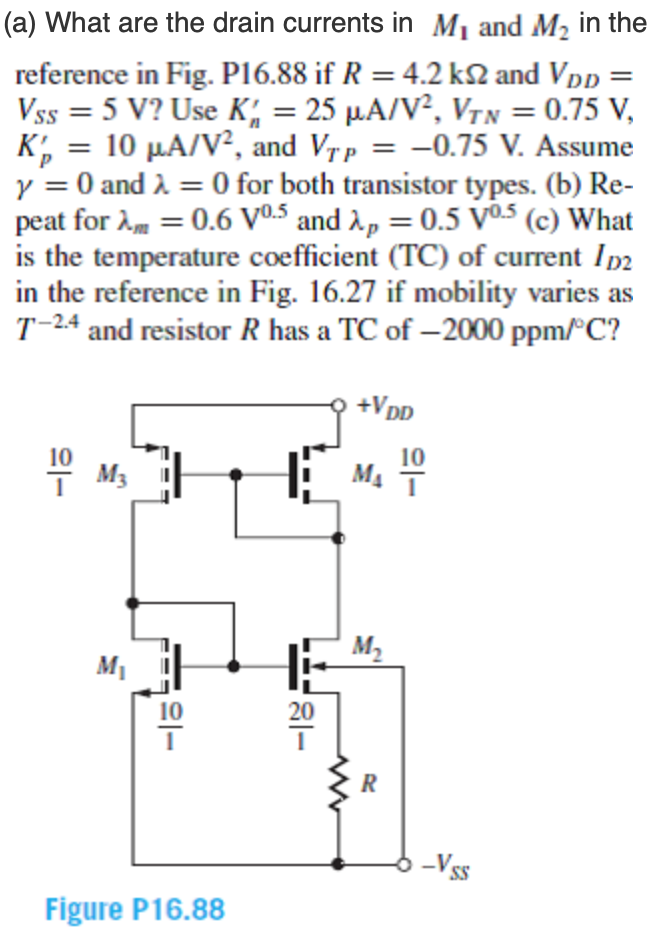

(a) What are the drain currents in Mi and M2 in the reference in Fig. P16.88 if R 4.2 kΩ and VDD- K,-10 μΑ/V2, and VTP-:-0.75 V. Assume 0 and A0 for both transistor types. (b) Re- peat for Am-0.6 V0.5 and λ,-0.5 V0.5 (c) What is the temperature coefficient (TC) of current Ip2 in the reference in Fig. 16.27 if mobility varies as T-24 and resistor R has a TC of-2000 ppm/ C? 10 10 I M 10 20 Figure P16.88 Show transcribed image text (a) What are the drain currents in Mi and M2 in the reference in Fig. P16.88 if R 4.2 kΩ and VDD- K,-10 μΑ/V2, and VTP-:-0.75 V. Assume 0 and A0 for both transistor types. (b) Re- peat for Am-0.6 V0.5 and λ,-0.5 V0.5 (c) What is the temperature coefficient (TC) of current Ip2 in the reference in Fig. 16.27 if mobility varies as T-24 and resistor R has a TC of-2000 ppm/ C? 10 10 I M 10 20 Figure P16.88
